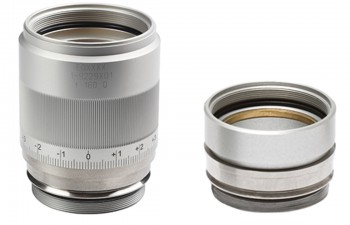

Focusing Units
With a focusing unit the parallel beam from the collimating unit is focused down to the workpiece. The size of the focused spot and the depth of focus are given by the ombination of collimating optics, focusing optics and beam quality. The Optoskand focusing units come either with a fixed or a z-adjustable focus position. For the z-adjustable unit the focal point position can be manually adjusted.Tech spec
|
Optics diameters |
d50 mm |
|
Focal lengths |
d50: 120 / 160 / 200 / 250 / 300 / 400 / 500 mm |
|
Max. power (CW) |
d50: 6 kW |
|
Optics material |
Synthetic fused silica |
|
AR-Coating |
1030-1090 nm |
Features
