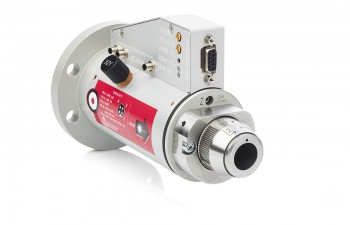

Fiber Coupling Unit (FCU)
The Fiber Coupling Unit (FCU) is an interface between the high power laser source and the fiber optic cable. The collimated beam from the laser is focused inside the FCU into the fiber core. The FCU handles required safety functions and includes sensors for improved supervising. The unit is easily integrated to the laser.Tech spec
|
Max. power (CW) |
4.5 kW |
|
Focal lengths |
50, 60, 70, 85, 100 mm |
|
Max. collimated beam |
?18 mm (incl. 99% of the beam energy) |
|
Optics material |
Synthetic fused silica |
|
AR-coatings |
1030-1090 nm, 780-1100 nm, 510-550 nm |
|
Fiber interfaces |
QBH/ RQB / QD/ Q5 (LLK-B) |
Features
? Control and Safety Electronics
? CANopen communication
