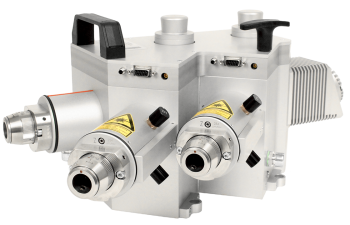

Fiber to Fiber Optic Switch Air-cooled (FFS ac)
The Fiber to Fiber Optic Switch Air-cooled (FFS ac) is built as a stand-alone unit sealed with a safety cube. With the FFS ac, one laser source can be time shared between several fiber optic cables. The FFS ac has one fiber input and up to four fiber outputs. This opens up for flexible and cost-effective use of your laser source. The FFS ac is safety certified by DGUV.Tech spec
|
Max. power (CW) |
4.5 kW |
|
Magnification |
0.6 / 1.0 / 1.2 |
|
Max. NA |
0.09 / 0.18 / 0.18 |
|
Optics material |
Synthetic fused silica |
|
AR-coating |
1030-1090 nm |
|
Fiber interfaces |
QBH / RQB / QD / Q5 (LLK-B) |
? Air-cooled (passive)
