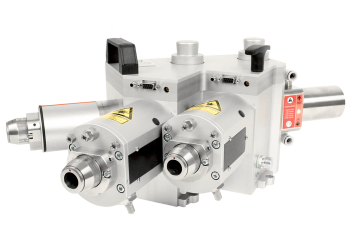

Fiber to Fiber Optic Switch (FFS)
The Fiber to Fiber Optic Switch (FFS) is built as a stand-alone unit sealed with a beam dump. With the FFS, one laser source can be time or energy shared between several fiber optic cables. The FFS has one fiber input and up to four fiber outputs. This opens up for flexible and cost-effective use of your laser source. The FFS is safety certified by DGUV.Tech spec
|
Max. power (CW) |
8 kW |
|
Magnification |
0.6 / 1.0 / 1.2 |
|
Max. NA |
0.12 / 0.14 / 0.14 |
|
Optics material |
Synthetic fused silica |
|
AR-coating |
1030-1090 nm |
|
Fiber interfaces |
QBH / RQB / QD / Q5 (LLK-B) |
Features
? Water-cooled unit
