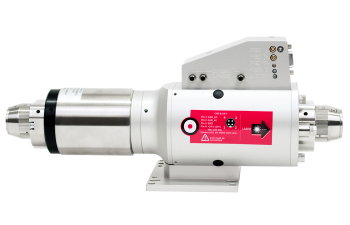

Fiber to Fiber Coupler Air-cooled (FFC ac)
The air-cooled Fiber to Fiber Coupler (FFC ac) is designed to handle up to 4.5 kW. The outer dimensions of the unit are minimized. The FFC ac process is controlled by DGUV-certified safety electronics within the electronics fin. The electronics also includes integrated sensors monitored and controlled by CANopen communication.|
Max. power (CW) |
4.5 kW |
|
Magnification |
0.6 / 1.0 / 1.2 |
|
Max. NA |
0.09 / 0.18 / 0.18 |
|
Optics material |
Synthetic fused silica |
|
AR-coating |
1030-1090 nm |
|
Fiber interfaces |
QBH / RQB / QD / Q5 (LLK-B) |
? Air-cooled (passive)
? CANopen communication
? Eye-safe
