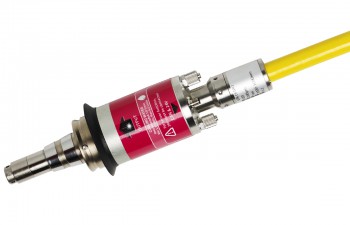

QD Fiber Optic Cable
The new generation of the QD fiber optic cable come with a more compact design, a new yellow outer hose, integrated intelligence for a safe performance. The QD fiber connector still fulfills the European Automotive Industry standard interface.Tech spec
|
AR-Coatings |
1030-1090 nm, 780-1100 nm, 510-550 nm |
|
Dimensions |
SM-1000 μm |
|
Lengths |
5-200 m |
|
Numerical aperture |
0.20 |
|
Max. power (CW) |
20 kW @1030-1090 nm |
|
Peak power |
10 kW at 10 ms pulse length |
|
Fiber losses |
< 3%, typically 1% |
|
Power loss capability |
2 kW for 10 s |
|
Compatible interface |
Trumpf LLK-D, Highyag LLK-Auto, IPG LCA |
Features
? Quartz block
? Mode stripper
? Integrated intellegence
? Safety interlock
? Available as pigtail fiber
? Square formed optical fiber available
? Pigtail fibers available
