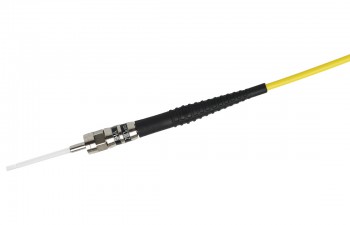

SMAQ Fiber Optic Cable
The new generation of the QD fiber optic cable come with a more compact design, a new yellow outer hose, integrated intelligence for a safe performance. The QD fiber connector still fulfills the European Automotive Industry standard interface.|
AR-Coatings |
780-1100 nm |
|
Dimensions |
50-300 μm |
|
Lengths |
1-10 m |
|
Numerical aperture |
0.20 |
|
Max. power (CW) |
500 W |
|
Fiber losses |
< 3%, typically 1% |
|
Back reflections |
Air-cooled: 100 W for 2 s, 40 W for 60 s |
|
Compatible interface |
SMA905 (z-plane moved 25 mm) |
Features
? Quartz block
? Mode stripper
? Internal water-cooled connectors
? Safety interlock
? Available as pigtail fiber
? Square formed optical fiber available
? Pigtail fibers available
