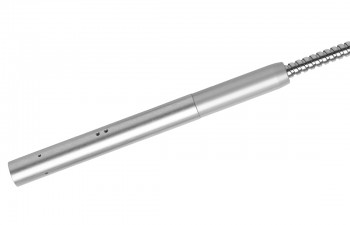

QCS Fiber Optic Cable
The QCS Fiber Optic Cable is designed for high quality transmission and diffraction limited fiber lasers. The QCS concept is to cable an optical fiber with minimal impact on the beam quality. The QCS fiber optic cable then delivers a collimated beam from a convenient fiber connector.Tech spec
|
AR-Coating |
1030-1090 nm, 1530-1570 nm |
|
Dimensions |
SM, LMA |
|
Lengths |
2-20 m |
|
Beam diameter |
≤5.5 mm |
|
Max. power (CW) |
300 W |
|
Peak power |
Typical: 10 kW |
|
Fiber losses |
< 3%, typically 1% |
|
Compatible interface |
?14 mm |
Features
? Quartz block
? Mode stripper
? Safety interlock
? One pigtail end for splicing
? Collimated output beam
? Beam expanders available
