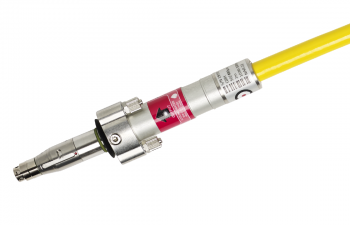

QBH Fiber Optic Cable
In the industry of high-power fiber lasers the conical QB interface, designed by Optoskand, is established and a well-proven standard. With a compact connector design and efficient internal water cooling the QBH fiber can handle mean power levels of up to 10 kW. Plug and play within 10 μm.|
AR-Coatings |
1030-1090 nm, 780-1100 nm, 510-550 nm |
|
Dimensions |
SM-1000 μm |
|
Lengths |
5-200 m |
|
Numerical aperture |
0.20 |
|
Max. power (CW) |
10 kW |
|
Peak power |
10 kW (10 ms pulse length) |
|
Fiber losses |
< 3%, (typically 1%) |
|
Power loss capability |
2 kW for 10 s |
|
Compatible interface |
Trumpf LLK-Q, IPG HLC-8/LC-8 |
|
Lengths |
1030-1090 nm, 780-1100 nm, 510-550 nm |
? Quartz block
? Safety interlock
? Square formed optical fiber available
? Pigtail fibers available
